制造流程
MANUFACTURING PROCESS

無縫、半無縫以及焊接鋼管、以精密的機器制造工藝,獨特的技術以及嚴格的質量管控流程,來確保產品品質。
Seamless,Semi-seamless and Welded tubes & pipes are manufacturing throughout state art of equipment,unique technologies and strict quality assurance process.

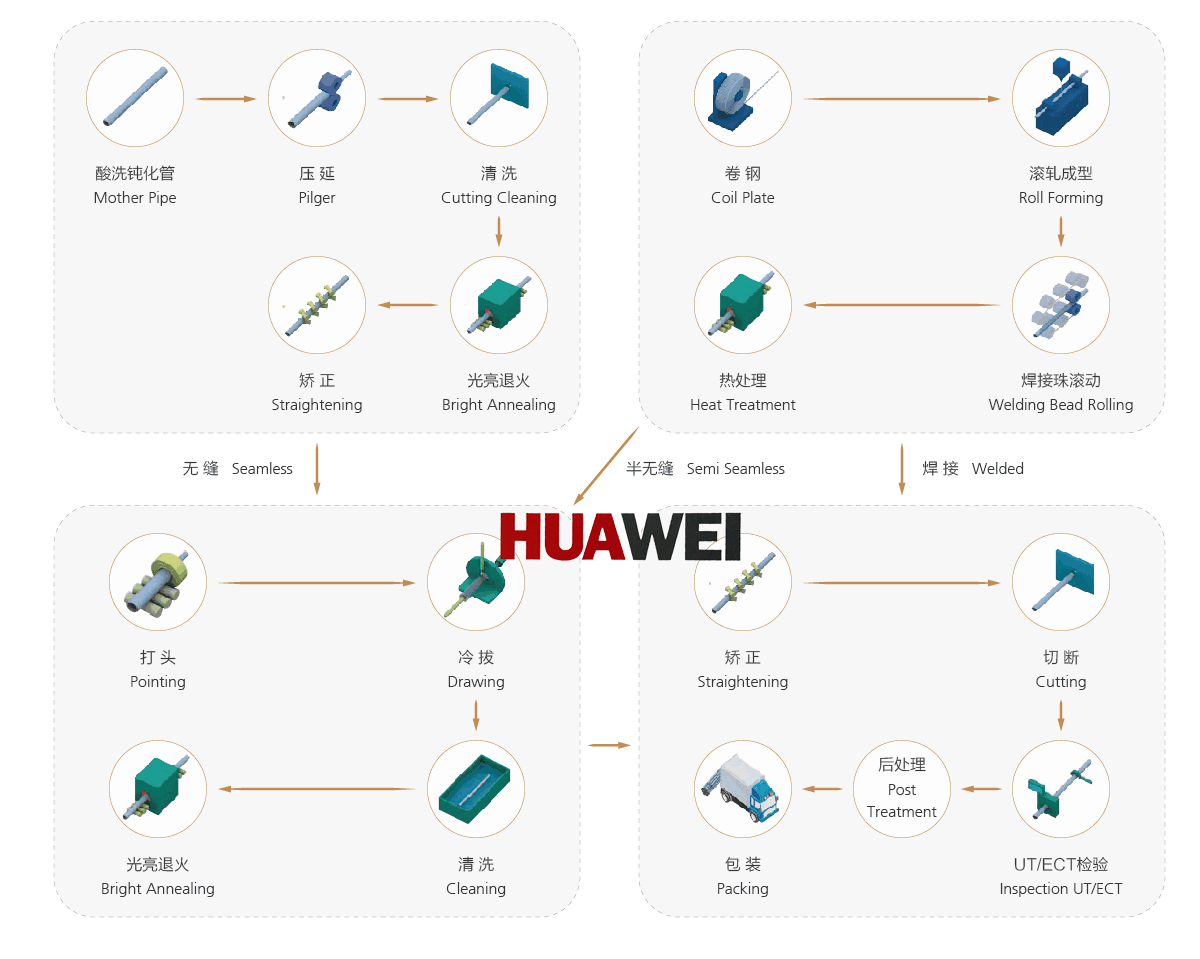

TUBE&PIPE 成型過程 TUBE&PIPE FORMING PROCESS

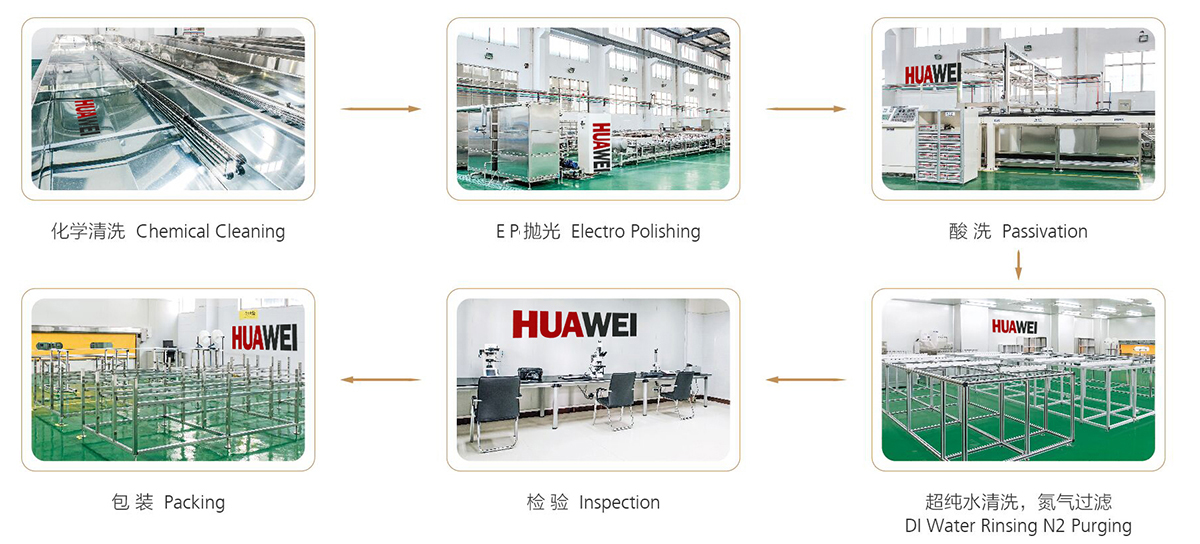

TUBE&PIPE 后續處理 TUBE&PIPE POST TREATMENT



生產產品規格
PRODUCTION SPECIFICATIONS

TUBE 尺寸表 AVAILABLE TUBE SIZE

八分(英寸)TUBE外徑代碼 Fractional(Inch) Tube O.D.Designation
外徑 Outside Diameter 壁厚 Wall Thickness(mm)
英寸 inch 毫米 mm
1/4 6.35 0.89 1.00
3/8 9.53 0.89 1.00
1/2 12.70   1.00 1.24 1.65
3/4 19.05     1.24 1.65
1 25.40     1.24 1.65
1-1/4 31.80       1.65
1-1/2 38.1       1.65
2 50.80       1.65

公制(毫米)TUBMetric(mm) Tube
外徑 Outside Diameter(mm) 壁厚 Wall Thickness(mm)
6 0.89
10 1.00
12 1.00
19   1.50
23   1.50

PIPE 尺寸表 AVAILABLE PIPE SIZE

外徑 Outside Diameter 管子表號 Schedule(mm)
A 英寸 inch 毫米 mm 5S 10S
8A 1/4 13.8 1.20 1.65
10A 3/8 17.3 1.20 1.65
15A 1/2 21.7 1.65 2.10
20A 3/4 27.2 1.65 2.10
25A 1 34.0 1.65 2.80
32A 1-1/4 42.7 1.65 2.80
40A 1-1/2 48.6 1.65 2.80
50A 2 60.5 1.65 2.80
65A 2-1/2 76.3 2.10 3.00
80A 3 89.1 2.10 3.00
100A 4 114.3 2.10 3.00
125A 5 139.8 2.80 3.40
150A 6 165.2 2.80 3.40
200A 8 216.3 2.80 4.00
250A 10 267.4 3.40 4.00
300A 12 318.5 4.00 4.50

Tube和Pipe管子標準單位長度均為4米/支,6米/支可根據需要定制
Standard unit length for both Tubes&Pipes is 4 meters per piece,6 meters per piece is available upon request.


不銹鋼氣缸管 Pneumatic Cylinder Stainless Steel Tube

不銹鋼氣缸管 Pneumatic Cylinder Stainless Steel Tube
內徑 Internal Diameter(mm) 外徑 Outside Diameter(mm) 壁厚 Wall Thickness(mm)
6 7 0.5
8 9 0.5
10 11 0.5
11.25 0.63
12 13.4 0.7
15 16.6 0.8
16 17.4 0.7
18 1
20 21.4 0.7
22.8 1.4
25 26.4 0.7
27.8 1.4
32 33.6 0.8
35 1.5
40 41.6 0.8
43 1.5
50 52 1
53 1.5
63 65 1
66 1.5

管子標準單位長度為2米/支,其他尺寸可根據需要定制
Standard unit length for both Tubes&Pipes is 2 meters per piece,other size is available upon request.
